50 watts fiber laser marking machine with affordable price is also called name plate jewelry engraving and cutting machine, because its laser power is strong enough, so it can do not only deep engraving but also thin cutting for name plate jewelry in gold silver brass materials.Custom name jewelry business is booming and very popular, choose our 50 watts fiber laser cutting machine is a best choice to help your custom jewelry business...
Cheap price 50 watt fiber laser name plate jewelry engraving cutting machine
Description:
Cheap price 50 watt fiber laser name plate jewelry engraving cutting machine adopts the third generation (the most advanced) solid-state fiber laser to create the super fine effect of marking. This model is of integral structure no pollution no optical power coupling loss air cooling high efficiency and stability its life is as long as 100000 hours. It has many advantages such as quality beam small volume easy transportation low energy consumption and so on.
Applications of custom jewelry name plate cutting made by 50 watts fiber laser
Applicable materials:Cheap price 50 watt fiber laser name plate jewelry engraving cutting machine is suitable for marking all metal materials and most of non-metal materials. For custom jewelry job, mostly engrave and cut gold silver, brass, stainless steel, and copper...

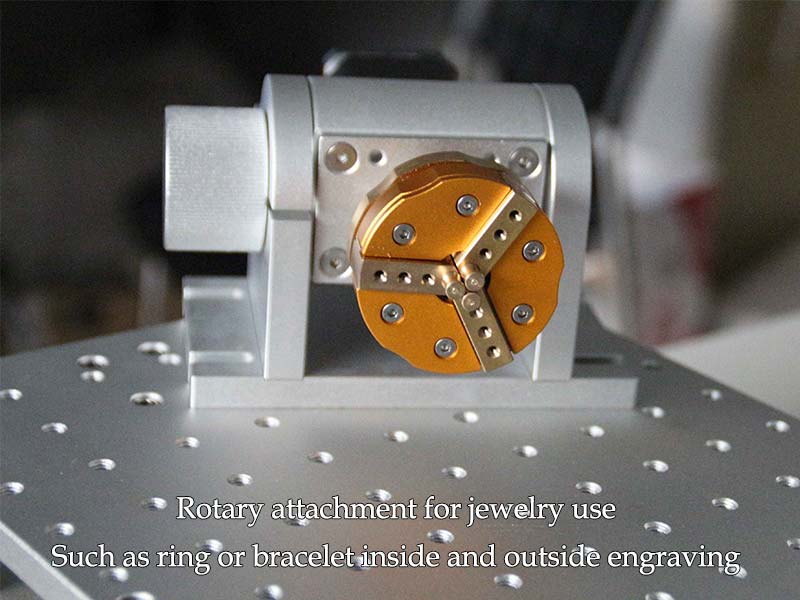

50 watt fiber laser name plate jewelry engraving cutting machine is widely applied to jewelry engraving such as name logo, photo engraving on pendant, and also do some custom name plate jewelry thin cutting, its recommend cutting thickness is within 1.2mm, which is already enough for custom name jewelry. and also no problem to do ring rotary engraving both inside and outside.
Specifications:
|
Product model |
MZ-FM50 |
MZ-FM60 100 |
|
Type of machine |
50 watt fiber laser name plate jewelry engraving cutting machine |
|
|
Laser Wavelength |
1064nm |
|
|
laser power |
50W |
60W 100W |
|
Modulating frequency |
20KHz—100KHz |
|
|
Marking Range: |
110mm×110mm 175mm×175mm 210mm×210mm |
|
|
Repetition Precision |
±0.002 |
|
|
Marking mode |
static or dynamic |
|
|
Spot diameter |
0.025mm |
|
|
Lifting way of working table |
Manual or automatic |
|
|
Lifting height |
500mm |
|
|
Travel of table |
X:150mm Y: 90mm |
|
|
Machine power supply |
220V 50Hz 20A |
|
|
Cooling method |
forced-air cooling |
|
|
Power of the Whole Equipment |
<0.6KW |
|
|
working conditions |
temperature:13°C~29°C humidity:5%~75% free of dust and well ventilated |
|
|
Overall dimension |
760×720×750mm |
|
|
Machine weight |
120Kg |
|
Our after- sale service:
We have 2 year guarantee for the 50 watt fiber laser name plate jewelry engraving cutting machine and 3 months guarantee for consumables. We will provide an "Instruction Book" "Operation Manual" and "Training Video" (in English version) to you which is easily understood and handle by the customer.
Competitive Advantage:
50 watt fiber laser name plate jewelry engraving cutting machine display
