Many jewelry shop don't know how to engrave metal jewelry with laser. Today we will introduce you our 30w 50 watts fiber laser engraving machine for metal jewelry with best price. It is very easy to use and can do what you like on jewelry engraving. Fiber jewelry engraving laser machine works with all metals such as gold silver, brass, stainless steel,no problem to do both flat surface engraving and also no problem to do round surface engraving such as rings or jewelry bracelets, inside and outside engraving, both ok....
For 50 watts fiber laser marking machine, it has full function of common fiber laser 20W 30W marking machine, but also can work faster in metal deep engraving, what's the best is that it can do customized jewelry name laser cutting on gold silver brass and other jewelry materials. It can make customized name, letters, logos, photos engraving on all metals product surface.
1) Laser cutting on gold silver brass sheet to make their custom name jewelry.
2) Deep engrave on all metals, and do custom engraving on gift or some product to improve profit

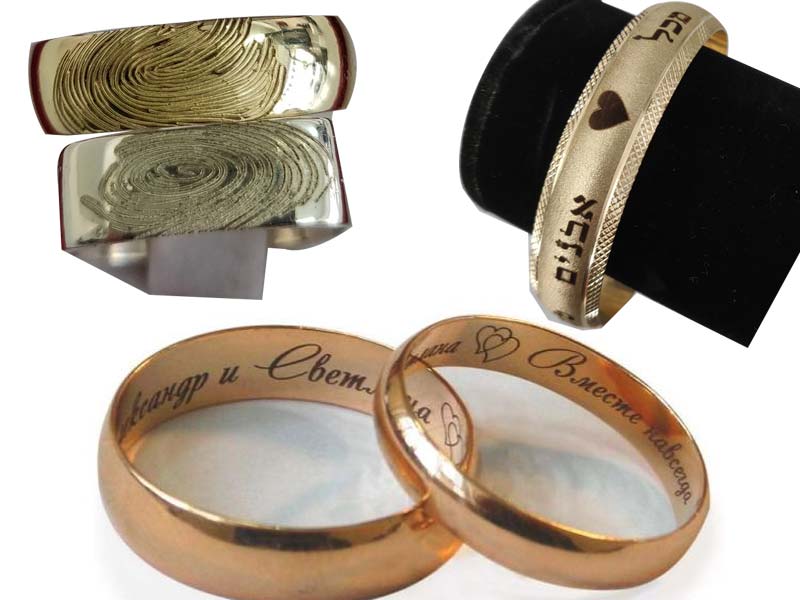

3) Deep laser engraving machine for metal jewelry such as bracelet and rings inside engraving, photos engraving
1)For custom name jewelry laser cutting, they mostly laser cut gold silver, or brass, the thickness is mostly 0.8mm, maximum within 1.2mm. It can cut patterns in dxf ai and other vector file. so you can design by coreldraw or outo cad. About cutting time, it depends on the thickness of gold silver sheet and name size, for 0.5mm cutting, it usually takes about 4-6 minutes, for 0.8mm thickness, usually takes about 8-12 minutes, if 1-1.2mm, it will take around 13-16 minutes.
2)For metal engraving, such as Aluminum ,stainless steel ,carbon steel, its engraving depth can be 0.01-1.5mm by 50W fiber laser engraving machine.
|
Product model |
MZ-FMS50 |
MZ-FMS100 |
|
Type of machine |
30W 50 watts desktop fiber laser engraving machine for metal jewelry with best price |
|
|
Laser Wavelength |
1064nm |
|
|
laser power |
50W |
100W |
|
Modulating frequency |
20KHz-100KHz |
|
|
Marking Range: |
110mm×110mm 175mm×175mm 210mm×210mm |
|
|
Repetition Precision |
±0.002 |
|
|
Marking mode |
static or dynamic |
|
|
Spot diameter |
0.025mm |
|
|
Lifting way of working table |
Manual or automatic |
|
|
Lifting height |
500mm |
|
|
Travel of table |
X:150mm Y: 90mm |
|
|
Machine power supply |
220V 50Hz 20A |
|
|
Cooling method |
forced-air cooling |
|
|
Power of the Whole Equipment |
<0.5KW |
|
|
working conditions |
temperature:13°C~29°C, humidity:5%~75%, free of dust and well ventilated |
|
|
Overall dimension |
760×720×1450mm |
|
|
Machine weight |
125Kg |
|
If any other questions or for more information about our 50W fiber laser marking machine for gold silver jewelry engraving and cutting, just feel free to text me on whatsapp:+8614753226012 or email to hellomike612@naver.com
