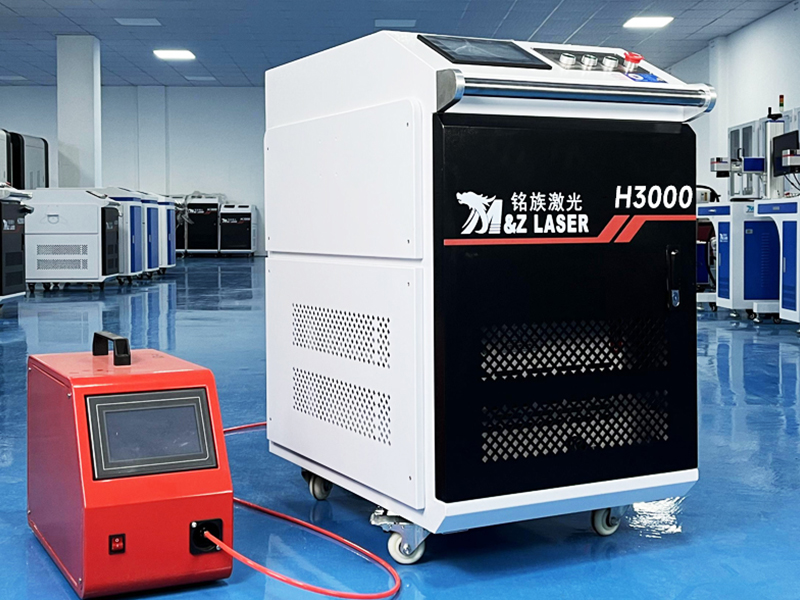

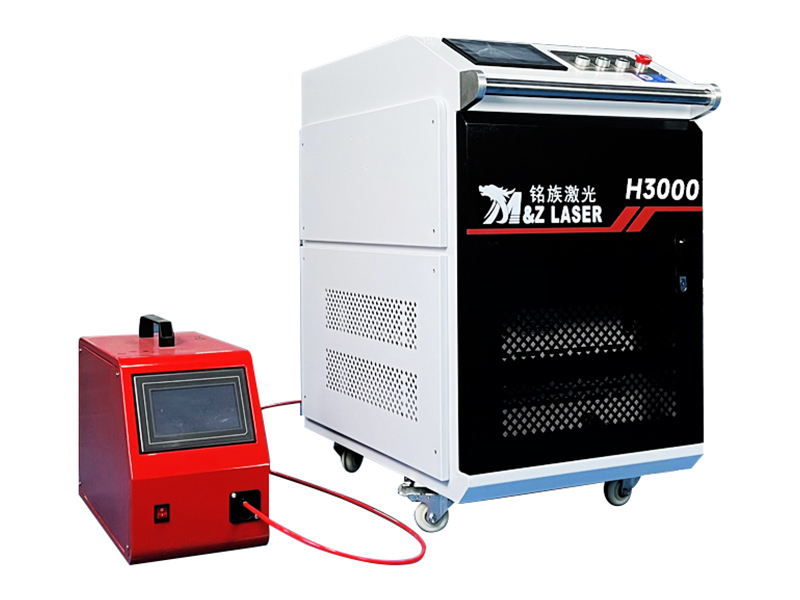

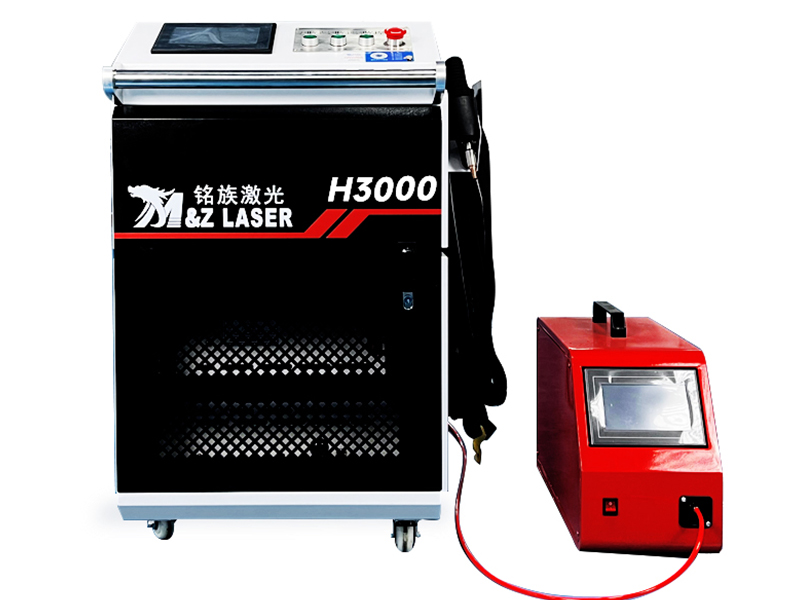

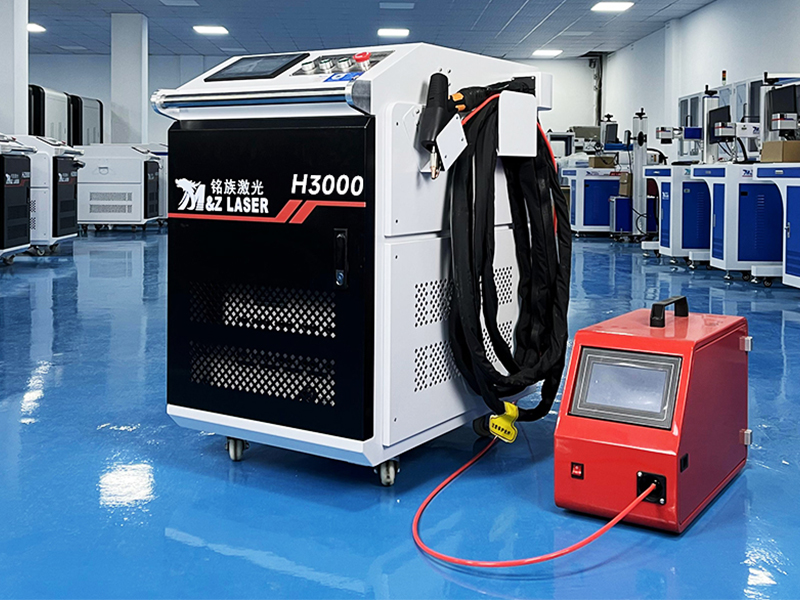

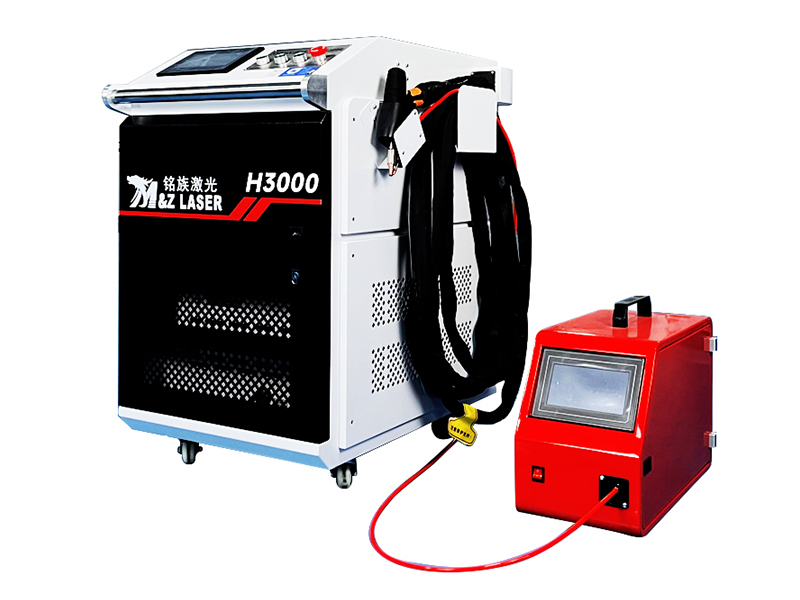

This 3000W hand held laser welding machine for metals and stainless steel. It can install laser source Raycus, Max IPG and BTW brand. This handhled fiber laser welding machine mini is pre-built water chiller inside. andheld Laser welding machine uses high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the interior of the material through heat conduction, and melts the material to form a specific shape. molten pool.Handheld laser welding technology is a new type of metal welding method, mainly used for the welding of metal materials such as stainless steel brass aluminum carbon steel welding, and precision parts....
The welding speed of handheld laser welding machine is 3-5 times that of traditional argon arc welding and plasma welding. The welding heat affected area is small, and it will not cause problems such as deformation, blackening, traces on the back of the joint construction, and the welding depth is deep, the melting is sufficient, and the welding strength is very strong.
1.Handheld fiber laser welding machine could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It's a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.
2.This handheld fiber laser welding system is equipped with wobble welding system, so it can solve the big gap welding requirement. And also can be equipped with automatically welding wire feeding device.
3.Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
4.Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
5.With multiple safety alarms, it auto locks light after removing the work piece, which is safe.
6.Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.
| Application materials | |||||||
| Handheld laser welding machines have the characteristics of simple operation, high welding efficiency, beautiful weld appearance with small deformation, no need for extensive polishing, and low energy consumption. | |||||||
| Working area | 0-6mm | Scanning speed | 2-600mm/S | ||||
| Swing mode | Point/line | Software system | Continuous/Spot welding | ||||
| Laser power | 3000W | Fiber length | 10m | ||||
| Laser Frequency | 5Hz to 5000Hz adjustable | Laser power setting | 10% to 100% adjustable | ||||
| Laser wavelength | 1080±10nm | Duty cycle（%） | 0-100 | ||||
| Wire feeder | Single wire feeder | Wire feed speed | 1-120cm/min | ||||
| Wire diameter |
Φ0.8，Φ1.0，Φ1.2， Φ1.6monofilament |
||||||
| Double wire feeder | Wire feed speed | 1-120cm/min | |||||
| Wire diameter | Φ1.2，Φ1.6，Φ2.0twin-wire | ||||||
| Language | Chinese, English, Korean, Russian, Japanese, German, French, Italian, Spanish, Portuguese, Turkish, Greek, Czech, Slovak, Polish, Thai, Vietnamese, Romanian | ||||||
| Cooling method | water-cooling | Protective gas | Argon | ||||
| Power Supply | 380V, 50Hz, 63A | Machine power | 10Kw | ||||
| Packing | Plywood case with export standard | Manual | English | ||||
| Packing size | 78cm*130cm*145cm | G. N. Weight H. | 200kg | ||||
| 125cm*155cm*135cm | Gross weight | 270kg | |||||
| Power line length | 6m | Safety protection | Safety ground | ||||
| Maximum welding thickness | Carbon steel | 8mm | |||||
| Stainless steel | 8mm | ||||||
| Aluminum | 5mm | ||||||
| Name | Model No. | Picture | Configuration | ||||
| 3000 W handheld laser welding machine | MZ-FH3000-KH |
|
1. Laser 2. Welding system 3. Water cooler 4. Wire feeder |
||||
