Application Materials: Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon,etc....
Competitive Advantage:
Description:

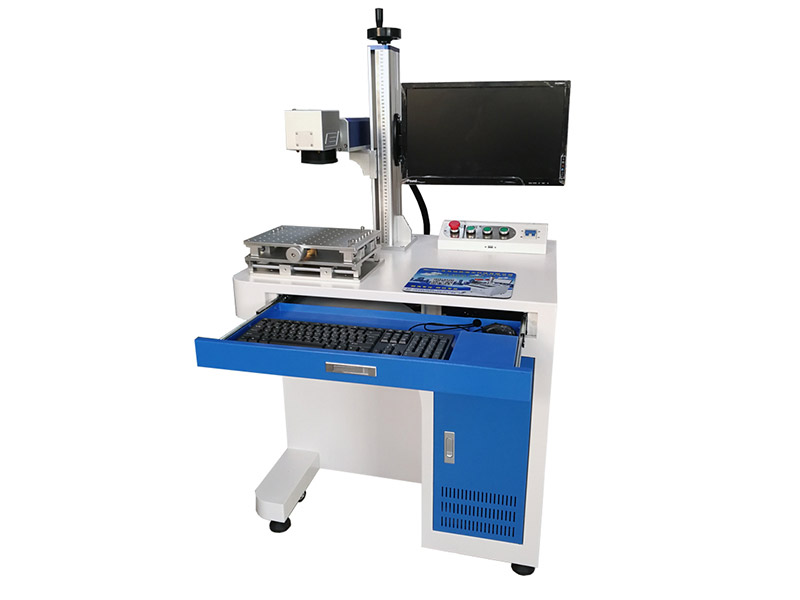

30w Fiber Laser Marking Machine for Metal adopts the third generation (the most advanced) solid-state fiber laser to create the super fine effect of marking. This model is of integral structure, no pollution, no optical power coupling loss, air cooling, high efficiency and stability, its life is as long as 120000 hours. It has many advantages, such as quality beam, small volume, easy transportation, low energy consumption and so on. Laser configuration: 10W, 20W,30W,50W
Specifications:
|
Product model |
MZ-FM30 |
MZ-FM50 60 |
|
Type of machine |
Raycus fiber laser marking machine |
|
|
Laser Wavelength |
1064nm |
|
|
laser power |
30W |
50 watts 60 watts |
|
Modulating frequency |
20KHz—100KHz |
|
|
Marking Range: |
110mm×110mm 175mm×175mm 210mm×210mm |
|
|
Repetition Precision |
±0.001 |
|
|
Marking mode |
static or dynamic |
|
|
Spot diameter |
0.025mm |
|
|
Lifting way of working table |
Manual or automatic |
|
|
Lifting height |
500mm |
|
|
Travel of table |
X:150mm Y: 90mm |
|
|
Machine power supply |
220V 50Hz 20A |
|
|
Cooling method |
forced-air cooling |
|
|
Power of the Whole Equipment |
<0.5KW |
|
|
working conditions |
temperature:13°C~29°C, humidity:5%~75%, free of dust and well ventilated |
|
|
Overall dimension |
760×720×1450mm |
|
|
Machine weight |
90Kg |
|
