Portable Fiber Laser Marking Machine 30w for Metals Engraving

Model NO: MZ-FMS30-R
Selling Points: Fiber Laser Marking Machine 30w
Views:
Brand: MZLASER
Rating:
 4.9 /5 based on 182 votes


Standard Price: $4880.00 / Set
Price Range: $2000.00 to $8000.00 / Set According to Configurations
The final price will fluctuate according to the configurations of Portable Fiber Laser Marking Machine 30w for Metals Engraving
Supply Ability: 100 Sets / Month In stock! From - Qingdao Marking Family Laser Technology Co.,Ltd

Release time: 2020-05-18 15:54
Advantage: Fiber Laser Marking Machine 30w for Metals Engraving is widely used in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewellery accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc....

Product Introduction

Fiber Laser Marking Machine 30w for Metals Engraving adopts the third generation (the most advanced) solid-state fiber laser to create the super fine effect of marking. This model is of integral structure, no pollution, no optical power coupling loss, air cooling, high efficiency and stability, its life is as long as 120000 hours. It has many advantages, such as quality beam, small volume, easy transportation, low energy consumption and so on. Laser configuration: 10W, 20W,30W,50W...

Product Descriptions

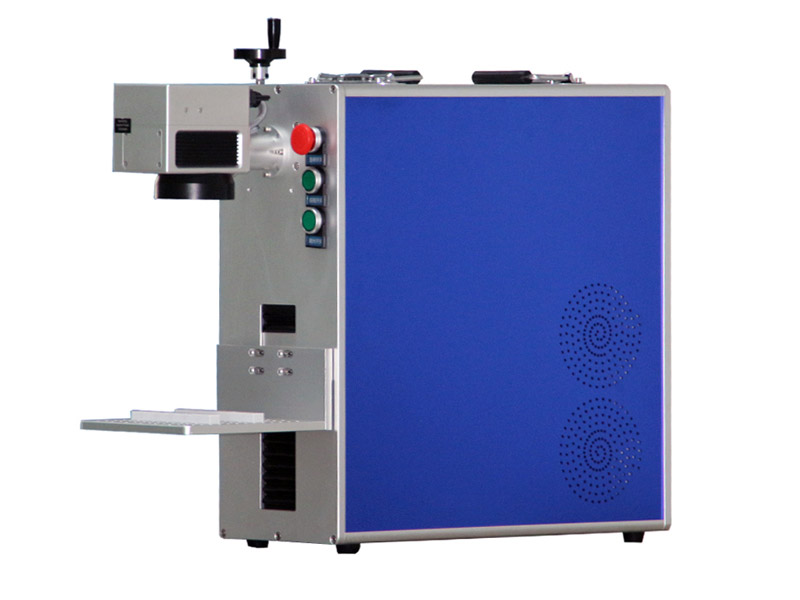

Portable Fiber Laser Marking Machine 30w for Metals Engraving


30W fiber laser marking machinefiber laser marking machine for metalslaser marking machine for metalsmetals laser engraving

Competitive Advantage:

  1. Fiber laser life as long as 100000 Hours
  2. Fine Marking effect with a high speed and high precision
  3. Can continuous working for 24 hours with high stability
  4. The most hot sales laser marking machine
  5.  Maintenance Free and cost-effective
  6. Easy and safe operation
  7. Fiber Laser Marking Machine 30w for Metals Engravings

Specifications:



Product model

MZ-FM10

MZ-FMP20 30  50

Type of machine

raycus laser marking machine

Laser Wavelength

1064nm

laser power

10W

20W  30W    50W

Modulating frequency

20KHz—100KHz

Marking Range:

110mm×110mm 175mm×175mm 210mm×210mm

Repetition Precision

±0.001

Marking mode

static or dynamic

Spot diameter

0.025mm

Lifting way of working

table

Manual or automatic

Lifting height

500mm

Travel of table

X:150mm   Y: 90mm

Machine power supply

220V   50Hz   20A

Cooling method

forced-air cooling

Power of the Whole Equipment

<0.5KW

working conditions

temperature:13°C~29°C, humidity:5%~75%, free of dust and well ventilated

Overall dimension

760×720×750mm

Machine weight

40Kg
