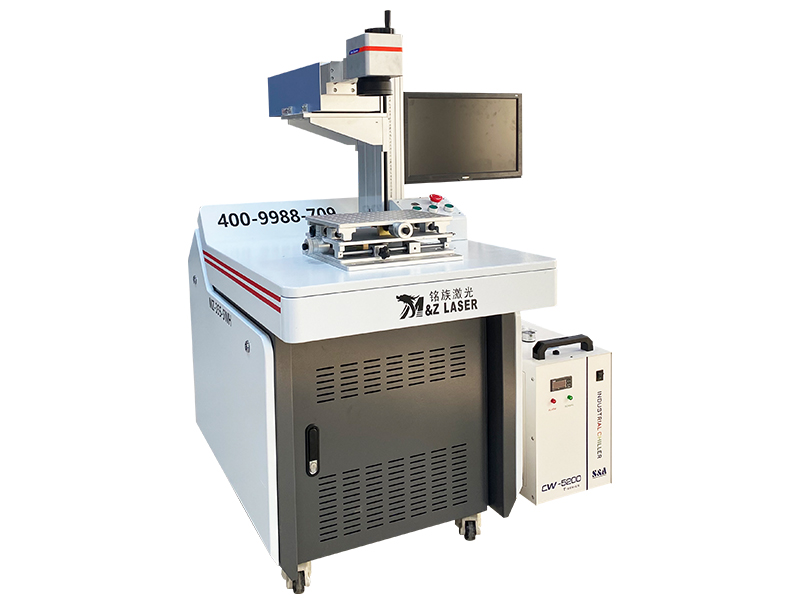

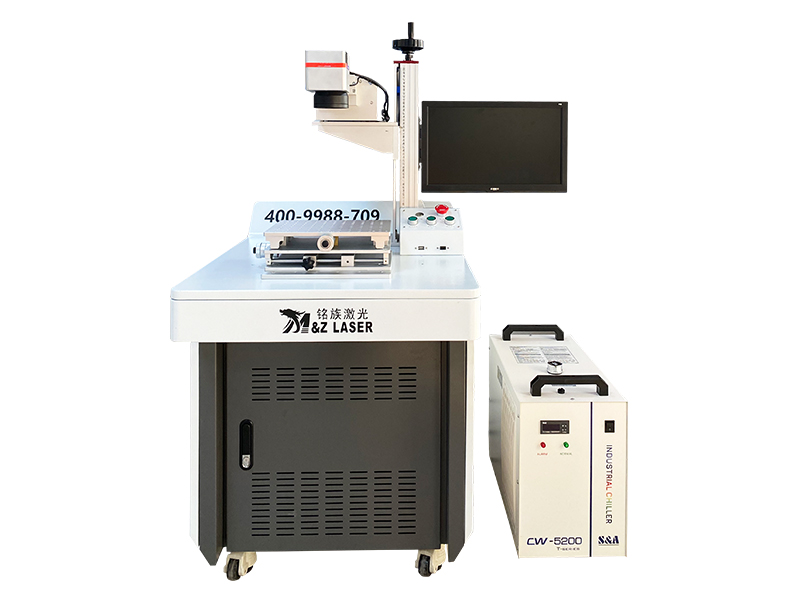

355nm Huaray 5W UV Laser Marking Machine and Laser Engraving Machine for Glass Plastic Paper Cloth Wood Metal

Model NO: MZ-UV5
Selling Points: Huaray 5W UV Laser Marking Machine
Views:
Brand: MZLASER
Rating:
 4.9 /5 based on 182 votes


Standard Price: $4880.00 / Set
Price Range: $2000.00 to $8000.00 / Set According to Configurations
The final price will fluctuate according to the configurations of 355nm Huaray 5W UV Laser Marking Machine and Laser Engraving Machine for Glass Plastic Paper Cloth Wood Metal
Supply Ability: 100 Sets / Month In stock! From - Qingdao Marking Family Laser Technology Co.,Ltd

Release time: 2021-12-18 13:41
Advantage: Ultraviolet laser marking machine belongs to a series of laser processing technology. It uses 355nm UV laser as the light source. The machine uses third-order intracavity frequency doubling technology to compare with infrared laser (pulsed fiber laser), 355 ultraviolet focusing spot. Small, can greatly reduce the mechanical deformation of the material and has little influence on the processing heat, because it is mainly used for superfine marking, engraving, cutting....

Product Introduction

Product Advantage 1. The service life can reach 20,000 hours. 2. All accessories are international famous brands. 3. The software integrates the common material label parameter database to make it more convenient and efficient for you to use the device. 4. Compact size, perfect function, convenient transportation....

Product Descriptions



355nm UV laser marking machine - Main Features

  • Laser (light source): 355 nm UV laser
  • Air-cooled device, small size, 20,000 hours maintenance-free (theoretical 20,000 hours of service life).
  • It requires water cooling, distilled water or pure water.
  • The focused spot is extremely small, and the processing heat affected zone is small (cold light), making the material heat-receiving area smaller. Not susceptible to heat deformation, ultra-fine marking, special material marking.
  • Low cost of use, better beam quality, high efficiency, low power consumption, more energy saving and environmental protection.
  • Can be applied to high-end market, ultra-fine marking environment, cosmetics, pharmaceuticals, LCD liquid crystal, electronic components, communication equipment, food and medicine packaging, glass division, electronic components, metal jewelry marking.
  • 355nm uv laser printing machine
    drinking glasses laser engraving machine
    355nm uv laser marking machine



UV Laser Marking Machine - Technical Parameters

355nm UV Laser Marking Machine



Parameter

Unit

Description

   Wavelength

354.7

nm



Average Output Power

2.0~~10.0

W

@30kHz

Pulse Width

<16

ns

@30kHz

Pulse Repetition Rate

10-100

kHz



Spatial Mode

TEMoo





M2

<1.2





Beam Diameter

2.0+/-0.2

mm

1m Measured at window

Beam Full Divergence Angle

<0.5

mrad



Beam Circularity

>0.9





Pulse-to-Pulse Stability

<3

%

RMS

Average Power Stability

<5

%

RMS/8hr

Beam-Pointing Drift

<25

µrad/℃



Polarization Ratio

>100:1





Polarization Orientation

Horizontal





Operating Temp. & RH

10 to 35
<80


%



Storage Temp. & RH

-20 to 65
<90


%



Electricity Requirement

Power Consumption

100-240
50/60
<800

VAC
Hz
W

Single phase

Warranty

12

months


355nm UV laser engraving samplescustom drinking glass laser engravingcustom laser engraving on drinking glasses
