50 watts fiber laser marking machine is very hot sale for jewelry use. Mainly used our fiber laser 50w to custom jewelry engraving and thin cutting. For custom jewelry shop, they mainly cut gold, silver, brass materials, cutting thickness is usually 0.5mm, 0.6mm, 0.8mm, 0.9mm, 1mm. Also have customers use it for more than 1mm thickness cutting, just giving enough time to fiber laser marking machine to let it cut through. Its recommended cutting thickness is within 1.2mm for 50 watts fiber laser engraving cutting machine....

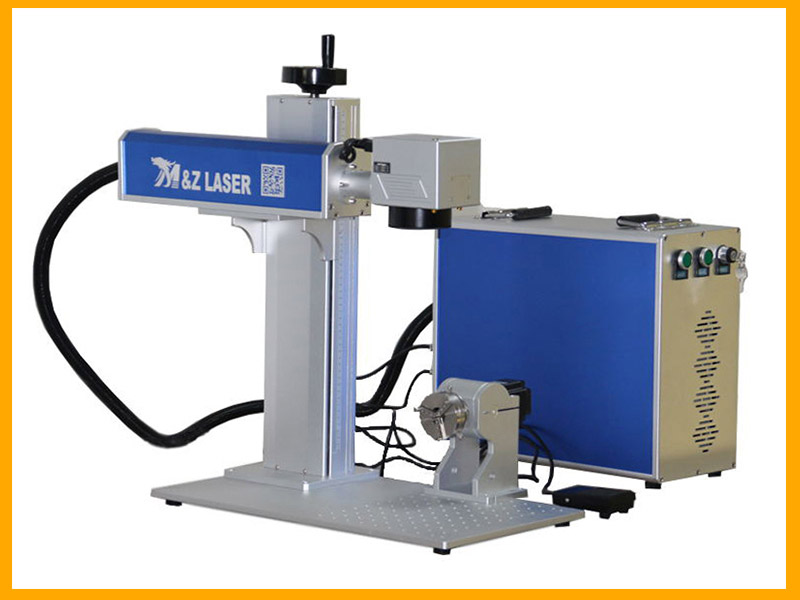

Small 50 watts fiber laser cutting engraving machine for gold and silver jewelry
Jewelry 50 watts fiber laser engraving cutting machine display
Specifications:
|
Product model |
MZ-FMS50 |
MZ-FMS100 |
|
Type of machine |
Small 50 watts fiber laser cutting engraving machine for gold and silver jewelrye |
|
|
Laser Wavelength |
1064nm |
|
|
laser power |
50W |
100W |
|
Modulating frequency |
20KHz-100KHz |
|
|
Marking Range: |
110mm×110mm 175mm×175mm 210mm×210mm |
|
|
Repetition Precision |
±0.002 |
|
|
Marking mode |
static or dynamic |
|
|
Spot diameter |
0.025mm |
|
|
Lifting way of working table |
Manual or automatic |
|
|
Lifting height |
500mm |
|
|
Travel of table |
X:150mm Y: 90mm |
|
|
Machine power supply |
220V 50Hz 20A |
|
|
Cooling method |
forced-air cooling |
|
|
Power of the Whole Equipment |
<0.5KW |
|
|
working conditions |
temperature:13°C~29°C, humidity:5%~75%, free of dust and well ventilated |
|
|
Overall dimension |
760×720×750mm |
|
|
Machine weight |
45Kg |
|
