Flying fiber laser marking machne is also called fiber laser printing machine when it is used for production line work. Such as hdpe pipe laser printing,pvc pipe online printing,and even laser printing for cables. Fiber laser printing machine can work without stop to print on the product surface, working very stable and fast speed.Laser printing is permanent can't be wipped away,and also environment friendly,that's why laser printing machine is hot sale for Hdpe PVC Pipe cable. now coming to replace the ink printing machine...
Hdpe PVC Pipe cable fiber laser printing machine for sale
Fiber Laser Marking Machine is widely used in LOGO marking of electronic products, Food, PVC, medical packaging materials (HDPE, PO, PP, etc.) marking and drilling (d≤10μm), Flexible PCB board marking and slicing, Metal or non-metallic coating removing and Wafer.
For hdpe pvc pipe manufacturer and cable manufacturer, they all need printing the date code, or their brand on the pipe or cable, The traditional way is to use ink jet printer to print, but ink jet printer consumption waste too much, and high consumable price, high maintenance and use costs, and chemical ink is not enough environmental protection, so now is being replaced by laser jet printer.
Advantage of fiber laser printing machine for hdpe pvc pile and cable
1, High marking speed, efficiency and precision
2, No consumable component, low cost and maintenance costs
3, High beam quality, small facular, can realize ultra-fine marking
4, Small heat-affected zone, avoids damage to work pieces, high yield
5. Long life span and no consumable and no need maintenance
Cable fiber laser printing machine parameters
Product model
MZ-FM20F
MZ-FM30 50F
Type of machine
Hdpe PVC Pipe cable printing machine fiber laser 20W 30W
Laser Wavelength
1064nm
laser power
20W
30W 50W
scanning speed
15000mm/s
Marking Range:
110mm×110mm
Repetition Precision
±0.002
Marking mode
static or dynamic
Spot diameter
0.025mm
Lifting way of working
table
Manual or automatic
Lifting height
500mm
Travel of table
X:150mm Y: 90mm
Machine power supply
220V 50Hz 20A
Cooling method
forced-air cooling
Power of the Whole Equipment
<0.6KW
working conditions
temperature:13°C~29°C humidity:5%~75% free of dust and well ventilated
Overall dimension
760×720×750mm
Machine weight
70Kg

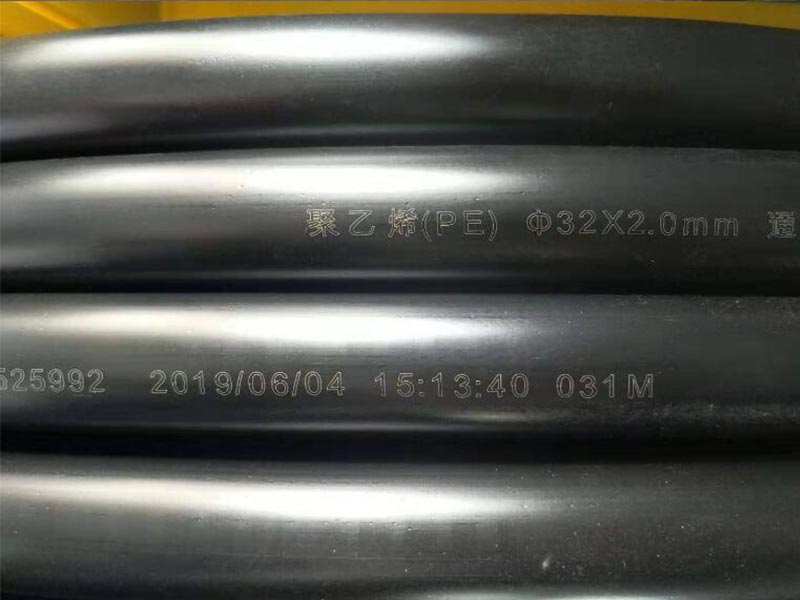

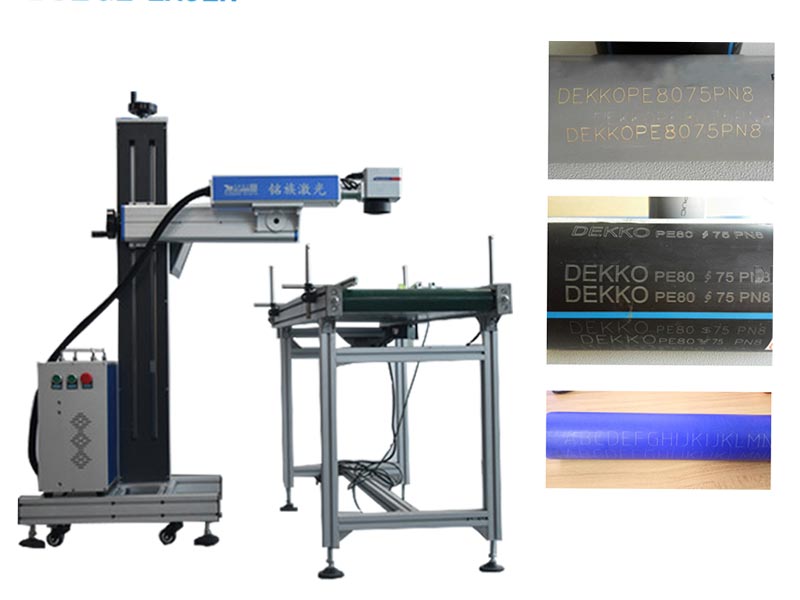

Hdpe pipe laser printing machine picture
