1. Adjustable speed & power 2. Water cooling and long working life 3. USB Interface, U-Flash Disk Supporter 4. Red-light position 5. Electric control - up and down working table 6. Support WIFI control 7. Applicable: no-metal materials, such as acrylic, double-color sheet, MDF, leather, colth, rubber, wooden boards, bamboo products, organic glass, plastics, marble, jade, crystal, etc....
|
|
|
|
|

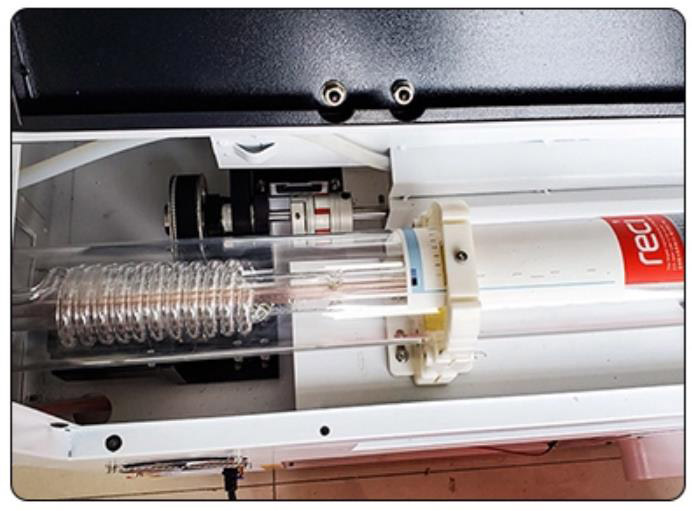

Good quality laser tube Long working life around 8000 hours
perfect performance in engraving and cutting.
Laser power: 40W, 50W, 60W, 80W Optional.
Good quality water cooling system to make sure the laser tube work better.
|
|
|

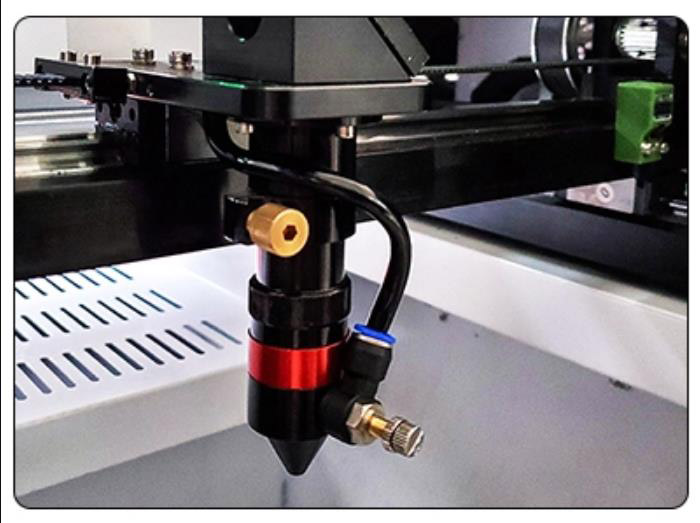

Good quality laser head, with red light positioning system,
imported lense ensuring the light beam stable and powerful.
Air cooling system to protect the lense and laser head.
|
|
|

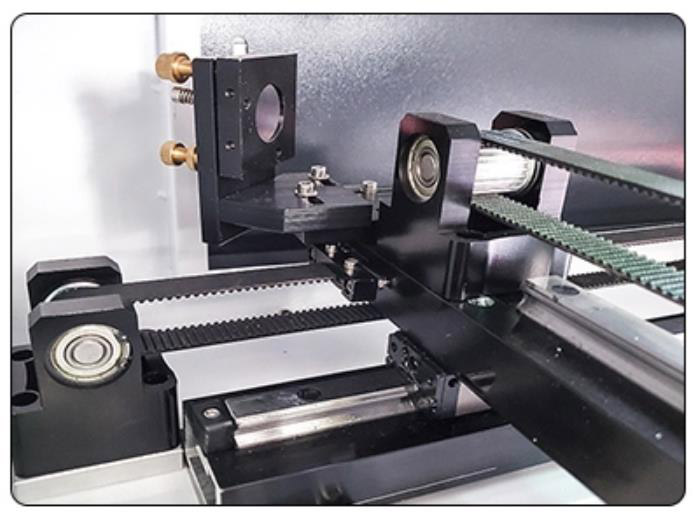

High-quality alloy Hiwin guide rails and slider, Anti-wear, high precision, Long time lifespan Fast speed and reduced deformation. |
|
|

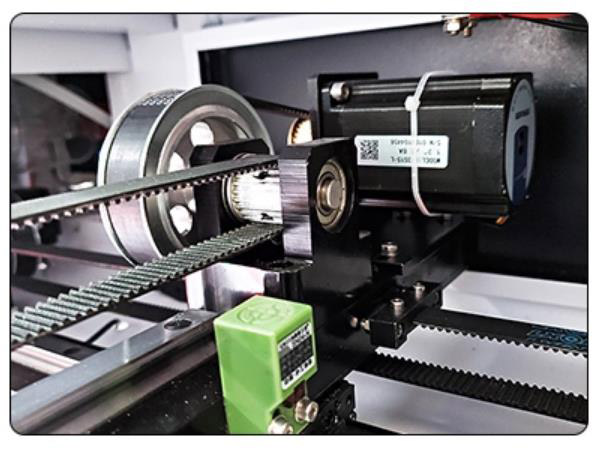

Using famous good quality Leadshine step motors and drive Ensuring a stable and fast machine runing speed. High response speed to make sure the cutting engraving effect better
|
|
|
|

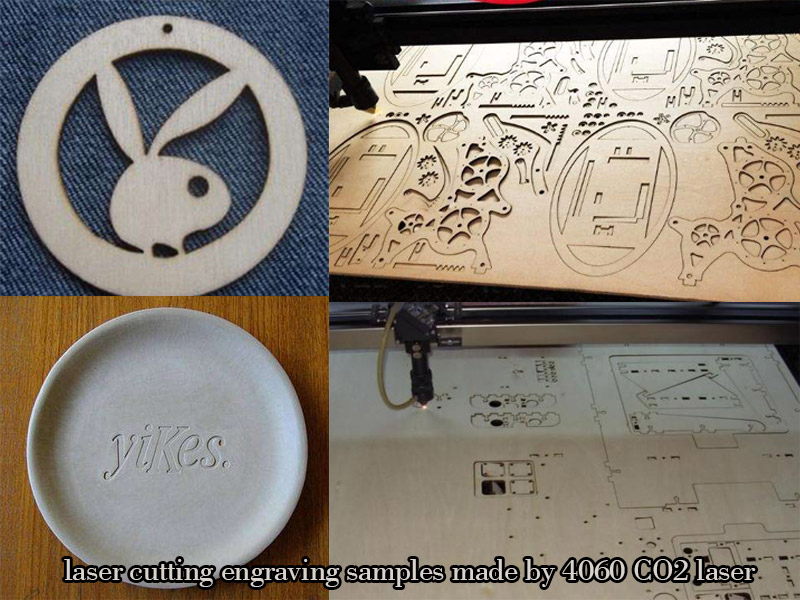

Non-metallic material, such as wood ware,acrylic,paper,bamboo ware,leather,cloth,organic glass,epoxy resin,wollens,plastic,rubber,
ceramics, crystal, jade, etc.
This CO2 laser cutting engraving machine is suitable for the industries, such as garment, leather, stuffed toy, computerized embroidery and clipping, Christmas crafts, umbrella, etc.
The machine is suitable for the 3-8mm medium density fiberboard cutting in the industries of tea box, craft gift box, etc.
|

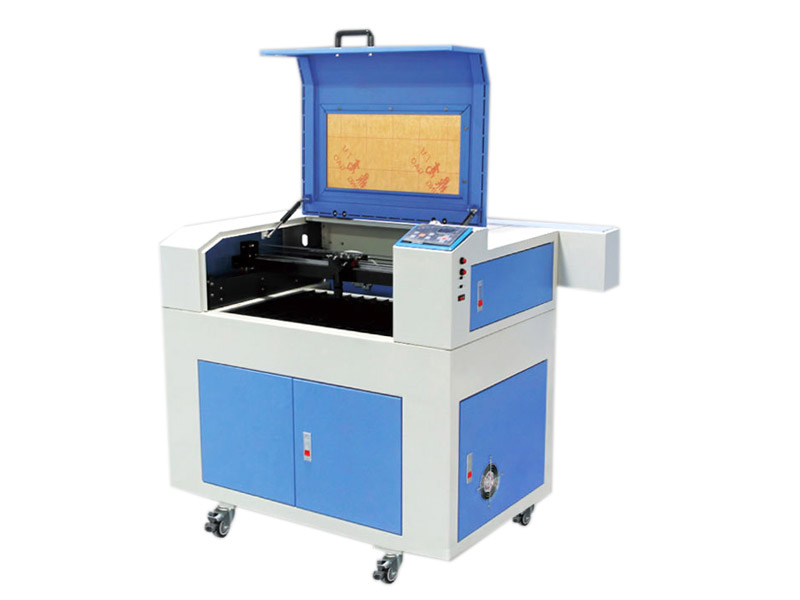

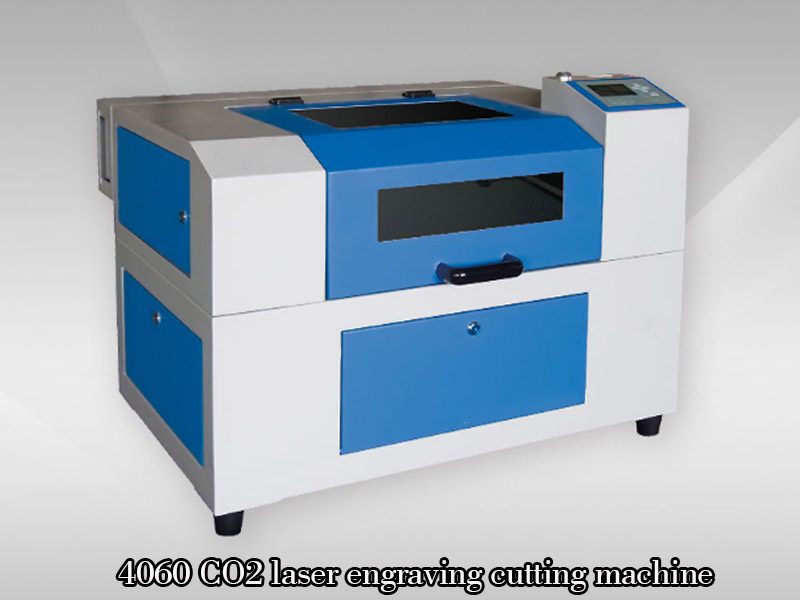

Model |
MZ-6040 |
|
Working area |
60cm*40cm / 24in*16in (L*W) |
|
Laser power |
40W/60W/80W |
|
Laser type |
CO2 sealed laser tube,water-cooled |
|
Engraving speed |
0-60000mm/min (0-2362inch/min) |
|
Laser Output |
1-100%software setting |
|
Resetting positioning accuracy |
≤±0.01mm |
|
Power supply |
220V/50HZ , 110V/60HZ |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5 - 95% |
|
Min. shaping character |
English 1.0 x 1.0mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
|
Driving system |
2 phases stepper motor |
|
Equipment Dimension |
1050mm*750mm*970mm 41in*30in*38in (L*W*H) |
|
Packing Dimension |
1150mm*850mm*1050mm 45in*33in*41in (L*W*H) |
|
Net Weight |
150kg |
